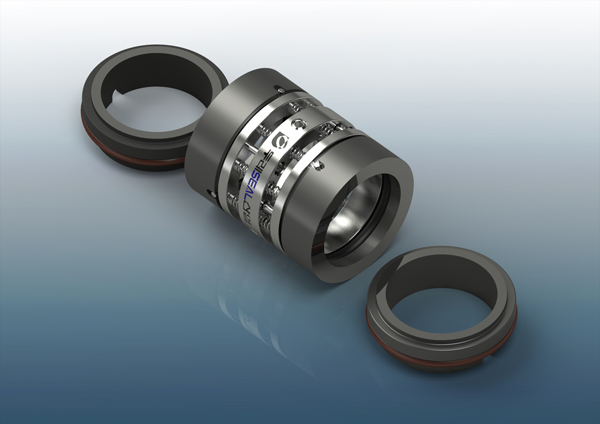

ADD1E

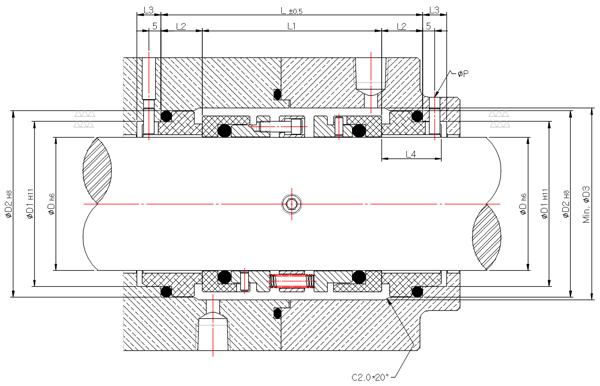

외형 치수도

Dimension

Material of Construction

Face Conbinations

Technical Data

Compatible Seal Liquid

D

D1

D2

D3

L

L1

L2

L3

L4

ΦP

20

29

35

39

81

61

10

9

17

3

25

34

40

45

81

61

10

9

17

3

28

37

43

48

81

61

10

9

17

3

30

39

45

49

81

61

10

9

17

4

35

44

50

55

81

61

10

9

17

4

40

51

57

61

84

61

13

9

20

4

45

56

63

67

91

65

13

9

20

4

50

62

70

74

96

65

15.5

9

22.5

4

55

67

75

79

96

65

15.5

9

22.5

4

60

72

80

84

96

65

15.5

9

23

4

65

77

85

91

96

65

15.5

9

23

4

70

83

92

96

103

65

19

9

26

4

75

88

97

101

105

67

19

9

26

4

80

95

105

109

105

67

19

9

26

4

85

100

110

114

105

67

19

9

26

4

90

105

115

119

105

67

19

9

26

4

95

110

120

124

105

67

19

9

26

4

100

115

125

129

105

67

19

9

26

4

Face Conbinations

Rotary Face

Tungsten Carbid, Silicon Carbid, Carbon

Stationary Face

Tungsten Carbid, Silicon Carbid, Carbon

Technical Data

Max. Pressure

12 kg/cm²·G

Temperature range

-20℃ ~ 250℃

Max. Circumferential Speed

25m/sec

Max. viscosity

300cp

Slurry

0.5 % Max.

Compatible Seal Liquid

Non- crystallizing acid, Alkali, Salt, Low viscosity oil, Monomer,

Hydrocarbon, Low slurry water, Sea water, etc.
